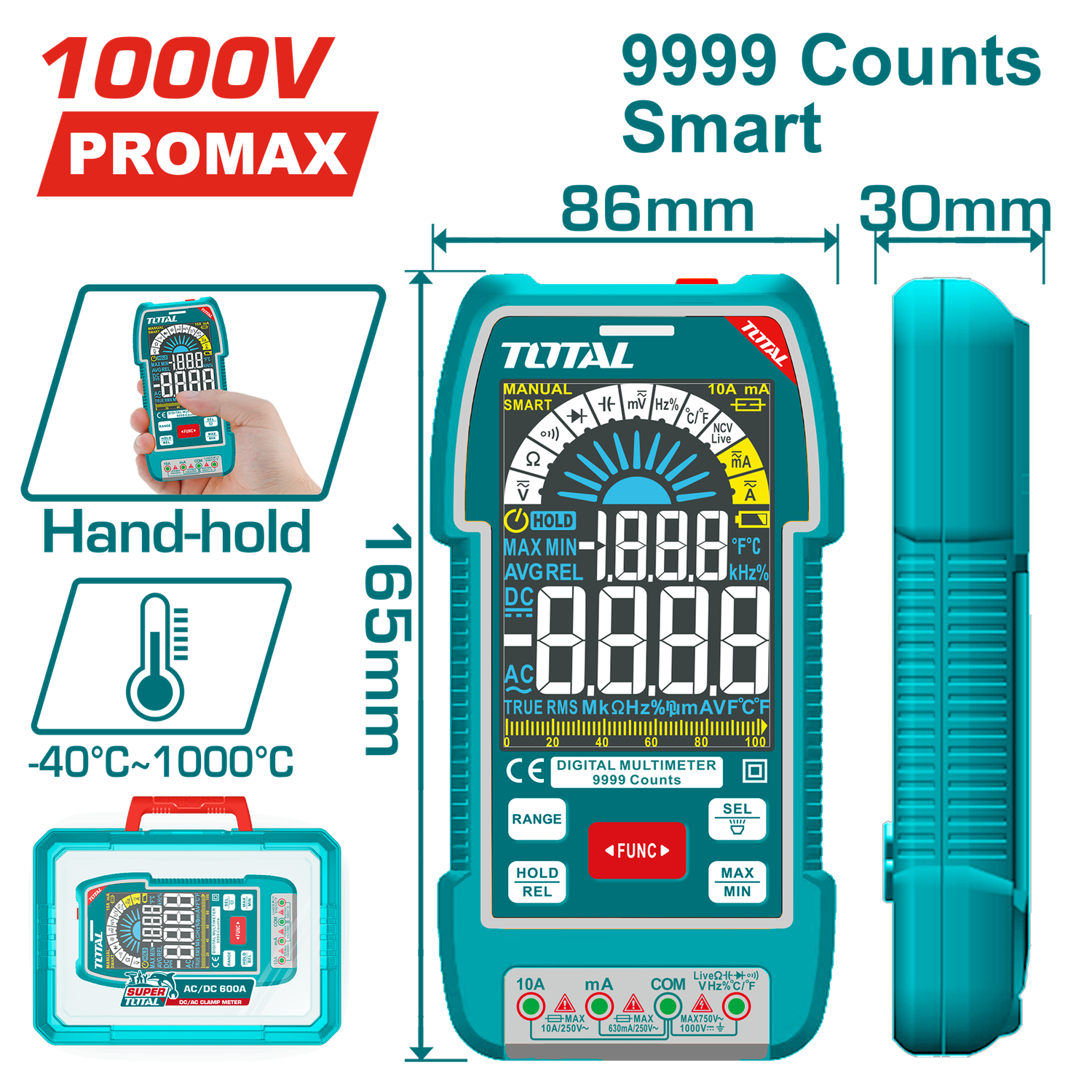

TOTAL Digital Multimeter TRMS 9999 Counts, VA Color Display, Smart Function-TMT5110004

TOTAL Digital Multimeter TRMS 9999 Counts, VA Color Display, Smart Function-TMT5110004

The TOTAL Digital Multimeter (TMT5110004) is a high-precision, professional-grade testing device designed for advanced electrical diagnostics. Featuring a VA color display and 9999-count True RMS (TRMS) measurement, it ensures highly accurate readings across a wide range of applications.

Equipped with a smart function for automatic detection of AC/DC voltage, resistance, and continuity, this multimeter simplifies operation and improves efficiency. It supports comprehensive measurements including current, voltage, resistance, capacitance, frequency, and temperature.

Advanced features such as Non-Contact Voltage (NCV) detection, live wire testing, MAX/MIN/AVG recording, relative measurement, and automatic current input identification make it ideal for electricians, engineers, and technicians. Built-in safety and convenience features like data hold, flashlight, auto power-off, and low battery indication enhance usability in all working conditions.

Key Features

• VA Color Display: Clear, high-visibility screen
• True RMS 9999 Counts: High accuracy for complex measurements
• Smart Function: Automatic detection of voltage, resistance, and continuity
• Wide Measurement Range: Supports current, voltage, resistance, capacitance, frequency, and temperature
• NCV & Live Test: Safe non-contact voltage detection and live wire testing
• Advanced Functions: MAX/MIN/AVG, relative measurement, and diode testing
• Automatic Input Detection: Identifies current input automatically
• User-Friendly Design: Data hold, flashlight, and auto power-off
• Portable & Durable: Comes with a protective plastic box

Specifications

• Brand: TOTAL
• Model: TMT5110004
• Product Type: Digital Multimeter

Display:

• VA Color Screen
• 9999 Counts True RMS

Current Measurement:

• DC/AC Current: 9.999mA / 99.99mA / 600mA / 10A

Voltage Measurement:

• DC Voltage: 99.99mV / 999.9mV / 9.999V / 99.9V / 1000V
• AC Voltage: 99.99mV / 999.9mV / 9.999V / 99.9V / 750V

Resistance:

• 999.9? / 9.999k? / 99.99k? / 999.9k? / 9.999M? / 99.99M?

Capacitance:

• 9.999nF / 99.99nF / 9.999µF / 99.99µF / 999.9µF / 9.999mF / 99.99mF

Frequency:

• 99.99Hz / 999.9Hz / 9.999kHz / 99.99kHz / 999.9kHz / 9.999MHz

Temperature:

• -40.0°C to 1000.0°C
• -40.0°F to 1832.0°F

Additional Functions:

• Smart Function (Auto AC/DC Voltage, Resistance & Continuity)
• NCV (Non-Contact Voltage Detection)
• Live Test
• Diode Test
• MAX / MIN / AVG Recording
• Relative Measurement
• Data Hold
• Flashlight
• Low Battery Indication
• Auto Power Off

Power Supply:

• 6 × LR03 AAA Batteries

Packaging:

• Plastic Box

In the Box

• 1 × TOTAL Digital Multimeter
• 6 × AAA Batteries
• 1 × Plastic Storage Box
