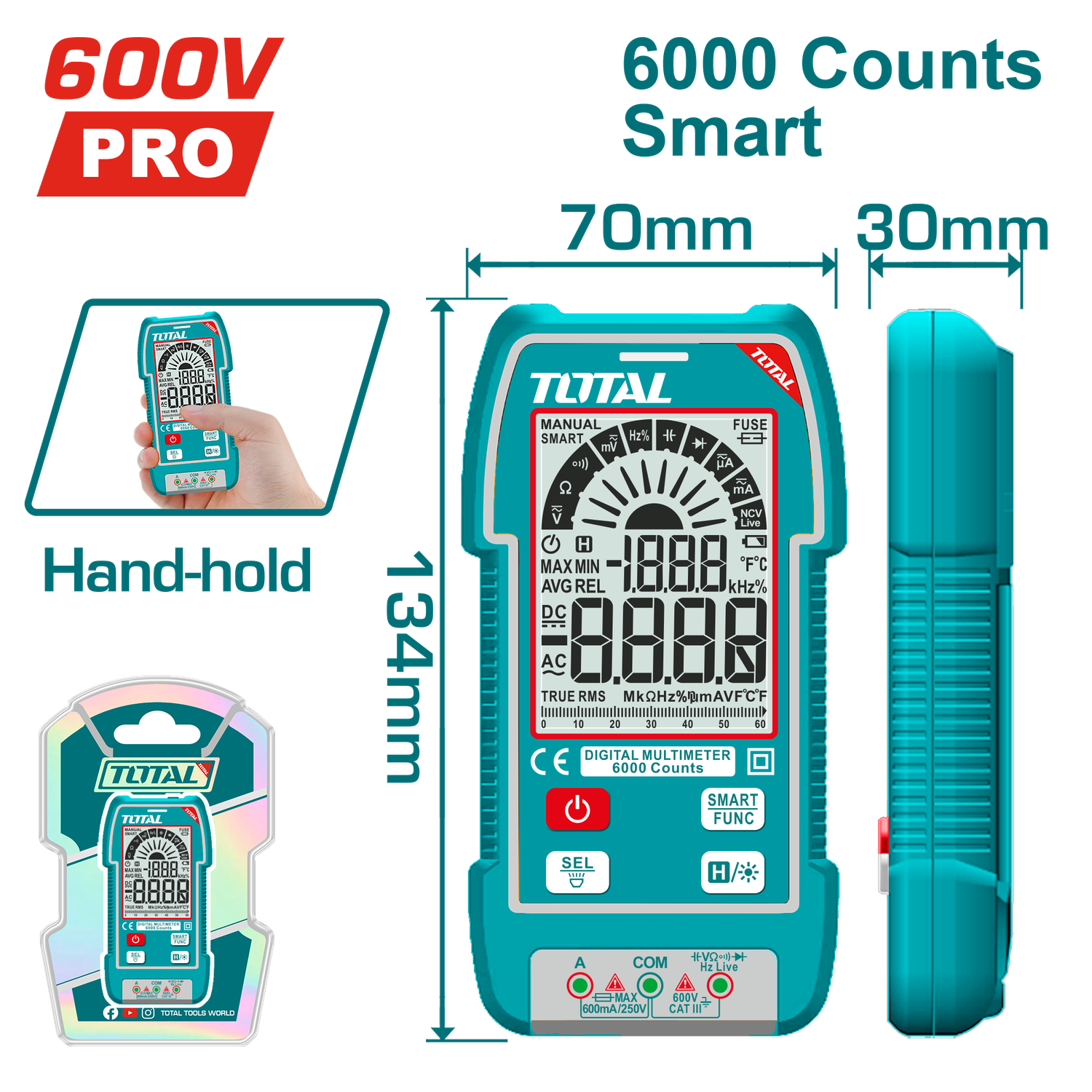

TOTAL Digital Multimeter TRMS 6000 Counts, Smart Function, NCV with LED Indicator-TMT516004

TOTAL Digital Multimeter TRMS 6000 Counts, Smart Function, NCV with LED Indicator-TMT516004

The TOTAL Digital Multimeter (TMT516004) is a versatile and user-friendly tool designed for accurate electrical measurements in both professional and DIY applications. Featuring a 6000-count True RMS (TRMS) display, it ensures reliable readings for AC/DC measurements.

Equipped with smart functions, this multimeter simplifies testing by automatically detecting key parameters. It supports a wide range of measurements including current, voltage, resistance, capacitance, and frequency. The built-in Non-Contact Voltage (NCV) detection enhances safety, while the input LED indication function helps users quickly identify correct input connections.

Designed for convenience, it includes a flashlight for low-light environments, data hold function, diode testing, and auto power-off. Compact and portable, it comes with batteries and is packed in a double blister for easy storage and display.

Key Features

• True RMS Display: 6000 counts for accurate measurements
• Smart Function: Simplifies operation with automatic detection
• Wide Measurement Range: Measures current, voltage, resistance, capacitance, and frequency
• NCV Detection: Non-contact voltage detection for enhanced safety
• Input LED Indicator: Helps identify correct input terminals
• Built-in Flashlight: Ideal for low-light working conditions
• User-Friendly: Data hold and auto power-off functions
• Safety Features: Low battery indication and diode test capability
• Compact Design: Lightweight and easy to carry

Specifications

• Brand: TOTAL
• Model: TMT516004
• Product Type: Digital Multimeter

Display:

• 6000 Counts True RMS

Current Measurement:

• DC/AC Current: 6000µA / 60mA / 600mA

Voltage Measurement:

• DC/AC Voltage: 60mV / 600mV / 6V / 60V / 600V

Resistance:

• 600? / 6k? / 60k? / 600k? / 6M? / 60M?

Capacitance:

• 6nF / 60nF / 600nF / 6µF / 600µF / 6mF / 60mF

Frequency:

• 10Hz / 100Hz / 1kHz / 10kHz / 100kHz / 1MHz / 10MHz

Additional Functions:

• Smart Functions
• Non-Contact Voltage Detection (NCV)
• Input LED Indication
• Flashlight
• Diode Test
• Data Hold
• Low Battery Indication
• Auto Power Off

Power Supply:

• 3 × LR03 AAA Batteries

Packaging:

• Double Blister

In the Box

• 1 × TOTAL Digital Multimeter
• 3 × AAA Batteries
