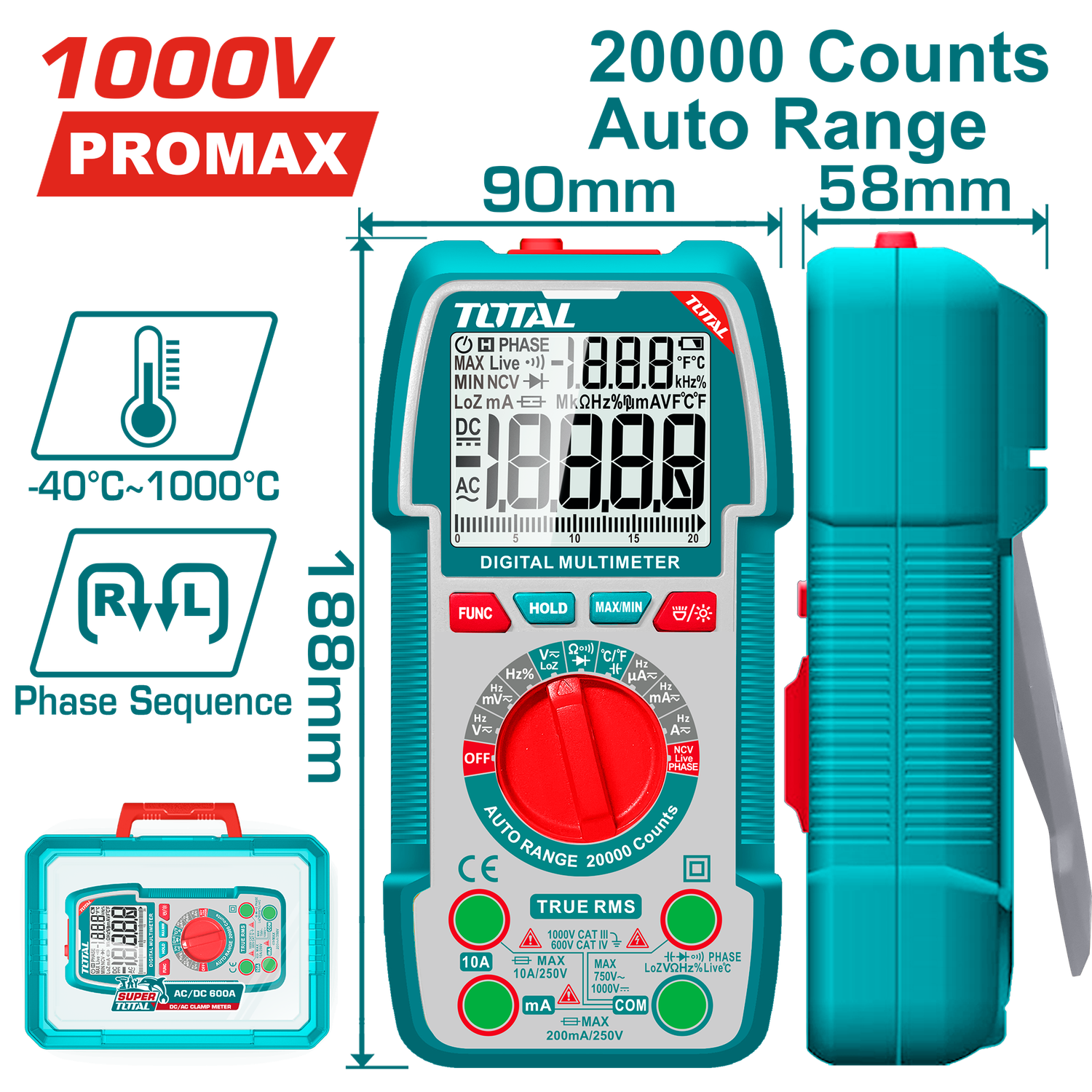

TOTAL Digital Multimeter TRMS 20000 Counts, Auto Range, NCV, Phase Detection-TMT5410003

TOTAL Digital Multimeter TRMS 20000 Counts, Auto Range, NCV, Phase Detection-TMT5410003

The TOTAL Digital Multimeter (TMT5410003) is a high-precision advanced measuring instrument designed for professional electrical diagnostics. Featuring a 20000-count True RMS (TRMS) display with auto-ranging capability, it delivers highly accurate and stable readings across a wide range of electrical measurements.

This multimeter supports advanced testing functions including AC/DC current and voltage, resistance, capacitance, frequency, duty cycle, and temperature measurement. It is equipped with Non-Contact Voltage (NCV) detection and live/neutral line identification for improved safety and efficiency during electrical work.

Additional professional-grade features such as LowZ mode, phase function, continuity test, diode testing, backlight display, and built-in flashlight make it suitable for demanding industrial and field applications. Compact, durable, and easy to operate, it is supplied with batteries and packed in a protective plastic box.

Key Features

• True RMS 20000 Counts: High accuracy for professional use
• Auto Range Function: Easy and efficient measurement selection
• Wide Measurement Capability: Current, voltage, resistance, capacitance, frequency, duty cycle, and temperature
• NCV Detection: Non-contact voltage detection for safety
• Live/Neutral Line Identification: Improves troubleshooting efficiency
• Advanced Functions: LowZ, phase function, continuity and diode testing
• User-Friendly Design: Data hold, backlight, and LED input indicators
• Built-in Flashlight: Supports low-light working environments
• Portable & Durable: Ideal for field and workshop use

Specifications

• Brand: TOTAL
• Model: TMT5410003
• Product Type: Digital Multimeter

Display:

• 20000 Counts True RMS
• Auto Range

Current Measurement:

• DC/AC Current: 200.00µA / 2000.0µA / 20.000mA / 200.00mA / 10.000A

Voltage Measurement:

• DC Voltage: 200.00mV / 2.0000V / 20.000V / 200.00V / 1000.0V
• AC Voltage: 200.00mV / 2.0000V / 20.000V / 200.00V / 750.0V

Resistance:

• 200.00? / 2.0000k? / 20.000k? / 200.00k? / 2.0000M? / 20.000M? / 100.00M?

Capacitance:

• 20.00nF / 200.0nF / 2.000µF / 20.00µF / 200.0µF / 2.000mF / 20.00mF

Frequency:

• 200.00Hz / 2.0000kHz / 20.000kHz / 200.00kHz / 2.0000MHz / 10.000MHz

Duty Cycle:

• 1% – 99%

Temperature:

• -40.0°C to 1000.0°C
• -40.0°F to 1832.0°F

Additional Functions:

• Non-Contact Voltage (NCV) Detection
• Live Line / Neutral Line Identification
• Data Hold
• LowZ Function
• Phase Function
• Diode Test
• Continuity Test
• Backlight Display
• Flashlight
• Low Battery Indication
• Input LED Indication

Power Supply:

• 3 × LR03 AAA Batteries

Packaging:

• Plastic Box

In the Box

• 1 × TOTAL Digital Multimeter
• 3 × AAA Batteries
• 1 × Protective Plastic Case
