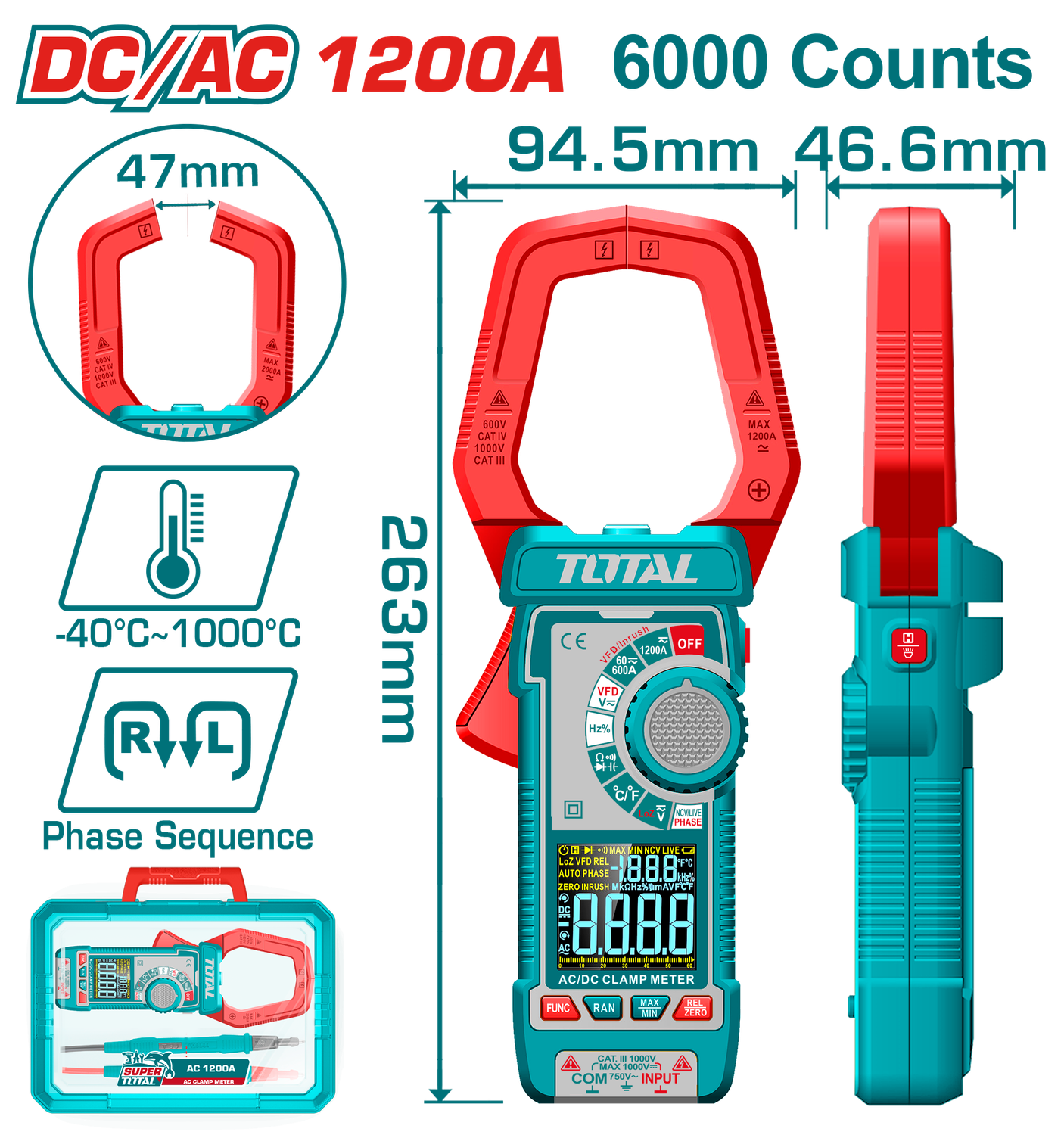

TOTAL Digital Clamp Meter TRMS 6000 Counts, 1200A AC/DC, VA Color Display-TMT7610002

TOTAL Digital Clamp Meter TRMS 6000 Counts, 1200A AC/DC, VA Color Display-TMT7610002

The TOTAL Digital Clamp Meter (TMT7610002) is a high-performance, professional-grade measuring tool designed for accurate electrical diagnostics. Featuring a vibrant VA color display and True RMS (TRMS) technology with 6000 counts, it ensures precise readings even in complex electrical environments.

This clamp meter supports a wide range of measurements including AC/DC current up to 1200A, voltage, resistance, capacitance, frequency, and temperature. Advanced features like LowZ, Low Pass Filter (LPF) for VFD applications, inrush current measurement, and phase function make it ideal for electricians, technicians, and industrial use.

Built for convenience and safety, it includes data hold, auto power-off, diode testing, and low battery indication. Supplied with AAA batteries and packed in a durable plastic box, it’s ready for immediate use.

Key Features

• VA Color Display: Clear and easy-to-read screen
• True RMS Measurement: Accurate readings in non-linear signals (6000 counts)
• Wide Current Range: Measures AC/DC current up to 1200A
• Comprehensive Functions: Voltage, resistance, capacitance, frequency, and temperature
• Advanced Features: LowZ, LPF (VFD), inrush current, and phase function
• User-Friendly: Data hold, auto power off, and low battery indication
• Multi-Function Testing: Includes diode test capability
• Portable & Durable: Comes in a protective plastic box

Specifications

• Brand: TOTAL
• Model: TMT7610002
• Product Type: Digital Clamp Meter

Display:

• VA Color Screen
• 6000 Counts True RMS

Current Measurement:

• DC Current: 60A / 600A / 1200A
• AC Current: 60A / 600A / 1200A

Voltage Measurement:

• DC Voltage: 600mV / 6V / 60V / 600V / 1000V
• AC Voltage: 600mV / 6V / 60V / 600V / 750V

Resistance:

• 600? / 6k? / 60k? / 600k? / 6M? / 60M?

Capacitance:

• 60.00nF / 600.0nF / 6.000µF / 60.00µF / 600.0µF / 6.000mF / 60.00mF

Frequency:

• 10Hz / 100Hz / 1kHz / 10kHz / 100kHz / 1MHz / 10MHz

Temperature:

• -40.0°C to 1000.0°C
• -40.0°F to 1832.0°F

Additional Functions:

• Data Hold
• LowZ
• LPF (VFD)
• Inrush Current
• Phase Function
• Diode Test
• Low Battery Indication
• Auto Power Off

Power Supply:

• 3 × LR03 AAA Batteries

Packaging:

• Plastic Box

In the Box

• 1 × TOTAL Digital Clamp Meter
• 3 × AAA Batteries
• 1 × Plastic Storage Box
