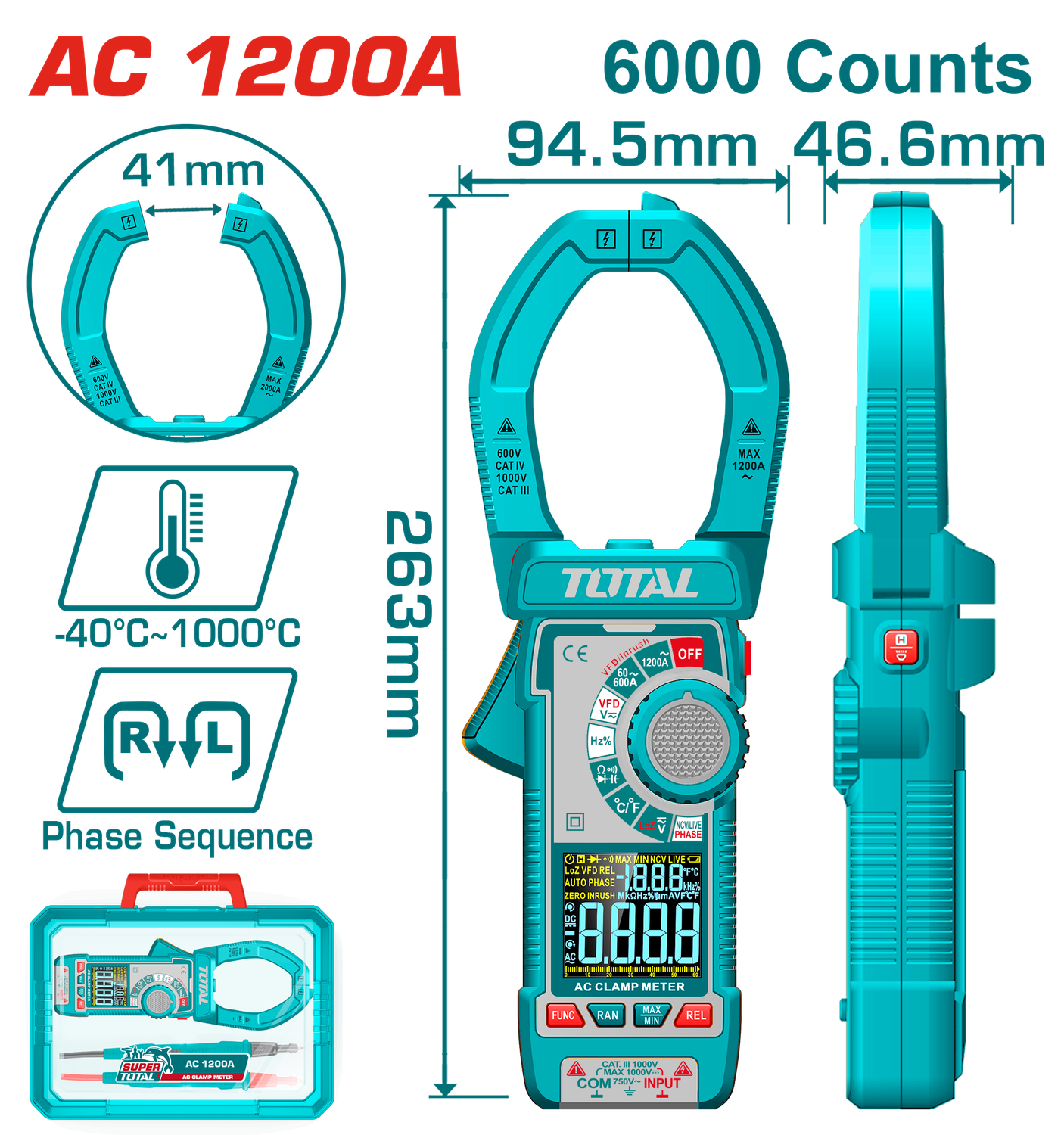

TOTAL Digital AC Clamp Meter TRMS 6000 Counts, 1200A, VA Color Display-TMT7610001

TOTAL Digital AC Clamp Meter TRMS 6000 Counts, 1200A, VA Color Display-TMT7610001

The TOTAL Digital AC Clamp Meter (TMT7610001) is a reliable and advanced diagnostic tool designed for accurate electrical measurements. Equipped with a VA color display and True RMS (TRMS) technology with 6000 counts, it delivers precise readings even in complex electrical environments.

This clamp meter is specifically designed for AC current measurement up to 1200A and offers a wide range of additional functions including voltage, resistance, capacitance, frequency, and temperature measurement. Advanced features such as LowZ, Low Pass Filter (LPF) for VFD applications, inrush current measurement, and phase function make it an excellent choice for electricians and technicians.

Compact, durable, and easy to use, it includes essential features like data hold, auto power-off, diode testing, and low battery indication. Supplied with AAA batteries and packed in a sturdy plastic box, it is ready for professional and everyday use.

Key Features

• VA Color Display: Clear and easy-to-read interface
• True RMS Accuracy: 6000 counts for precise measurements
• AC Current Measurement: Up to 1200A
• Multi-Function Tool: Measures voltage, resistance, capacitance, frequency, and temperature
• Advanced Functions: LowZ, LPF (VFD), inrush current, and phase function
• Convenient Operation: Data hold and auto power-off
• Safety Features: Low battery indication and diode testing
• Portable Design: Comes with a durable plastic storage box

Specifications

• Brand: TOTAL
• Model: TMT7610001
• Product Type: Digital AC Clamp Meter

Display:

• VA Color Screen
• 6000 Counts True RMS

Current Measurement:

• AC Current: 60A / 600A / 1200A

Voltage Measurement:

• DC Voltage: 600mV / 6V / 60V / 600V / 1000V
• AC Voltage: 600mV / 6V / 60V / 600V / 750V

Resistance:

• 600? / 6k? / 60k? / 600k? / 6M? / 60M?

Capacitance:

• 60.00nF / 600.0nF / 6.000µF / 60.00µF / 600.0µF / 6.000mF / 60.00mF

Frequency:

• 10Hz / 100Hz / 1kHz / 10kHz / 100kHz / 1MHz / 10MHz

Temperature:

• -40.0°C to 1000.0°C
• -40.0°F to 1832.0°F

Additional Functions:

• Data Hold
• LowZ
• LPF (VFD)
• Inrush Current
• Phase Function
• Diode Test
• Low Battery Indication
• Auto Power Off

Power Supply:

• 3 × LR03 AAA Batteries

Packaging:

• Plastic Box

In the Box

• 1 × TOTAL Digital AC Clamp Meter
• 3 × AAA Batteries
• 1 × Plastic Storage Box
